Light Type Thin Section External Gear Slewing Turntable Bearing for Canning Machinery

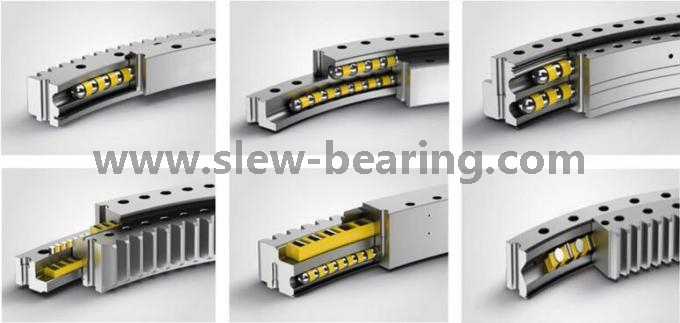

Light type slewing bearing is designed with compact structure, light weight and flexible rotation. Filling machine is using such slewing bearing is realize continuous and stable automatic filling.
The Thin Section Slewing Bearing, Slewing Ring has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly.
Product Description
Tytle:WD-061
Wight/KG:31-91
Strengths:The Oil nipple's location can be change according to the user's application.
Application:
1. food machinaery,
2.canning machinery
3.environmental machinery
4.package machinaery etc.
Slewing bearing parts details:
Ring Body
Material: 50Mn/42CrMo
Hardness: 230-250HB
Material structure: Forging
Material: GCr15
Isolation block
Material: polyamide 1010 resin
Nozzle
Material: brass
Seal
Material:SN7453 nitrile rubber
Gear
State: quenching
Hardness: 55-62HRC
Depth of hardening:>1.2mm
To get drawing (pdf),please clik on Model.
| Model Pdf.format | Weight kg | Structural dimension (mm) | Gear Data | Gear force( KN) | Clearance (mm) | |||||||||||
| D3 | d1 | H1 | H2 | Hu | Ho | d | m | z | Km | b | Allowed | Max | Axial | Radial | ||
 WD-061.20.0414.pdf | 31 | 412.5 | 416 | 46 | 46 | 10.5 | 10.5 | 495 | 5 | 99 | -0.5 | 45.5 | 11.75 | 23.5 | ≤0.28 | ≤0.24 |
 WD-061.20.0544.pdf | 43 | 542.5 | 546 | 46 | 46 | 10.5 | 10.5 | 630 | 6 | 105 | -0.6 | 45.5 | 14.2 | 28.4 | ≤0.30 | ≤0.26 |
| WD-061.20.0644.pdf | 52 | 642.5 | 646 | 46 | 46 | 10.5 | 10.5 | 732 | 6 | 122 | -0.6 | 45.5 | 14.2 | 28.4 | ≤0.30 | ≤0.26 |
| WD-061.20.0744.pdf | 59 | 742.5 | 746 | 46 | 46 | 10.5 | 10.5 | 828 | 6 | 138 | -0.6 | 45.5 | 14.2 | 28.4 | ≤0.30 | ≤0.26 |
| WD-061.20.0844.pdf | 71 | 842.5 | 846 | 46 | 46 | 10.5 | 10.5 | 936 | 8 | 117 | -0.8 | 45.5 | 18.93 | 37.86 | ≤0.30 | ≤0.26 |
| WD-061.20.0944.pdf | 77 | 942.5 | 946 | 46 | 46 | 10.5 | 10.5 | 1032 | 8 | 129 | -0.8 | 45.5 | 18.93 | 37.86 | ≤0.30 | ≤0.26 |
| WD-061.20.1094.pdf | 91 | 1093 | 1095 | 46 | 46 | 10.5 | 10.5 | 1184 | 8 | 148 | -0.8 | 45.5 | 18.93 | 37.86 | ≤0.30 | ≤0.26 |
| Model | Dimensions ( mm) | Mounting dimension (mm) | |||||||
| D | de | H | D1 | D2 | n | Φ | M | t | |
| WD-061.20.0414 | 504 | 342 | 56 | 455 | 368 | 20/24 | 13.5 | 12 | 20 |
| WD-061.20.0544 | 641 | 472 | 56 | 585 | 498 | 28/32 | 13.5 | 12 | 20 |
| WD-061.20.0644 | 743 | 572 | 56 | 685 | 598 | 32/36 | 13.5 | 12 | 20 |
| WD-061.20.0744 | 839 | 672 | 56 | 785 | 698 | 36/40 | 13.5 | 12 | 20 |
| WD-061.20.0844 | 950 | 772 | 56 | 885 | 798 | 36/40 | 13.5 | 12 | 20 |
| WD-061.20.0944 | 1046 | 872 | 56 | 985 | 898 | 40/44 | 13.5 | 12 | 20 |
| WD-061.20.1094 | 1198 | 1022 | 56 | 1135 | 1048 | 44/48 | 13.5 | 12 | 20 |
Note:
1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.
2. The Oil nipple's location can be change according to the user's application.
3. "Km" is addendum reduction; m: module; z: teeth nos.
4. For the load curve capacity,please download our catalogue for slewing bearing.
Light Type Thin Section External Gear Slewing Turntable Bearing for Canning Machinery
Light type slewing bearing is designed with compact structure, light weight and flexible rotation. Filling machine is using such slewing bearing is realize continuous and stable automatic filling.
The Thin Section Slewing Bearing, Slewing Ring has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly.
Product Description
Tytle:WD-061
Wight/KG:31-91
Strengths:The Oil nipple's location can be change according to the user's application.
Application:
1. food machinaery,
2.canning machinery
3.environmental machinery
4.package machinaery etc.
Slewing bearing parts details:
Ring Body
Material: 50Mn/42CrMo
Hardness: 230-250HB
Material structure: Forging
Material: GCr15
Isolation block
Material: polyamide 1010 resin
Nozzle
Material: brass
Seal
Material:SN7453 nitrile rubber
Gear
State: quenching
Hardness: 55-62HRC
Depth of hardening:>1.2mm
To get drawing (pdf),please clik on Model.
| Model Pdf.format | Weight kg | Structural dimension (mm) | Gear Data | Gear force( KN) | Clearance (mm) | |||||||||||
| D3 | d1 | H1 | H2 | Hu | Ho | d | m | z | Km | b | Allowed | Max | Axial | Radial | ||
| WD-061.20.0414.pdf | 31 | 412.5 | 416 | 46 | 46 | 10.5 | 10.5 | 495 | 5 | 99 | -0.5 | 45.5 | 11.75 | 23.5 | ≤0.28 | ≤0.24 |
 WD-061.20.0544.pdf | 43 | 542.5 | 546 | 46 | 46 | 10.5 | 10.5 | 630 | 6 | 105 | -0.6 | 45.5 | 14.2 | 28.4 | ≤0.30 | ≤0.26 |
| WD-061.20.0644.pdf | 52 | 642.5 | 646 | 46 | 46 | 10.5 | 10.5 | 732 | 6 | 122 | -0.6 | 45.5 | 14.2 | 28.4 | ≤0.30 | ≤0.26 |
| WD-061.20.0744.pdf | 59 | 742.5 | 746 | 46 | 46 | 10.5 | 10.5 | 828 | 6 | 138 | -0.6 | 45.5 | 14.2 | 28.4 | ≤0.30 | ≤0.26 |
| WD-061.20.0844.pdf | 71 | 842.5 | 846 | 46 | 46 | 10.5 | 10.5 | 936 | 8 | 117 | -0.8 | 45.5 | 18.93 | 37.86 | ≤0.30 | ≤0.26 |
| WD-061.20.0944.pdf | 77 | 942.5 | 946 | 46 | 46 | 10.5 | 10.5 | 1032 | 8 | 129 | -0.8 | 45.5 | 18.93 | 37.86 | ≤0.30 | ≤0.26 |
| WD-061.20.1094.pdf | 91 | 1093 | 1095 | 46 | 46 | 10.5 | 10.5 | 1184 | 8 | 148 | -0.8 | 45.5 | 18.93 | 37.86 | ≤0.30 | ≤0.26 |
| Model | Dimensions ( mm) | Mounting dimension (mm) | |||||||
| D | de | H | D1 | D2 | n | Φ | M | t | |
| WD-061.20.0414 | 504 | 342 | 56 | 455 | 368 | 20/24 | 13.5 | 12 | 20 |
| WD-061.20.0544 | 641 | 472 | 56 | 585 | 498 | 28/32 | 13.5 | 12 | 20 |
| WD-061.20.0644 | 743 | 572 | 56 | 685 | 598 | 32/36 | 13.5 | 12 | 20 |
| WD-061.20.0744 | 839 | 672 | 56 | 785 | 698 | 36/40 | 13.5 | 12 | 20 |
| WD-061.20.0844 | 950 | 772 | 56 | 885 | 798 | 36/40 | 13.5 | 12 | 20 |
| WD-061.20.0944 | 1046 | 872 | 56 | 985 | 898 | 40/44 | 13.5 | 12 | 20 |
| WD-061.20.1094 | 1198 | 1022 | 56 | 1135 | 1048 | 44/48 | 13.5 | 12 | 20 |
Note:
1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.
2. The Oil nipple's location can be change according to the user's application.
3. "Km" is addendum reduction; m: module; z: teeth nos.
4. For the load curve capacity,please download our catalogue for slewing bearing.
